管道外壁自動噴砂機
◆可用于時間范圍 Applicable scope
管類零件,如:槽鋼管、槽鋼、螺絲桿、螺絲桿、大形柱體形、圓罐類、柱體形型鋼件;利用雙槍(可按規定要求多槍)及颶風式清灰器和光電子感性特點,不斷提高了產出利用率及很大程度的減小了返修率。 (此儀器需規定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆首要技藝因素 Main technical parameters

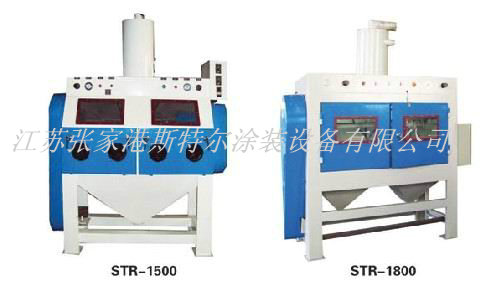

工具機型 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
工作上艙寸尺 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
設備寸尺 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
壓縮視頻自然空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電原 Power |
220v 50Hz |
220v 50Hz |
變頻柜交流電動機調速器器 Governor |
250W×2 |
250W×2 |
脫離器三相異步電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
離心分離機新風量 Air separator |
35m3/min |
35m3/min |
POS機承重 Machine weight |
900kg |
900kg |
