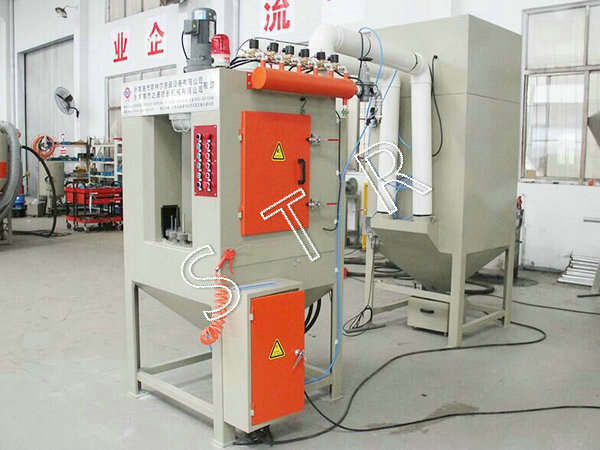

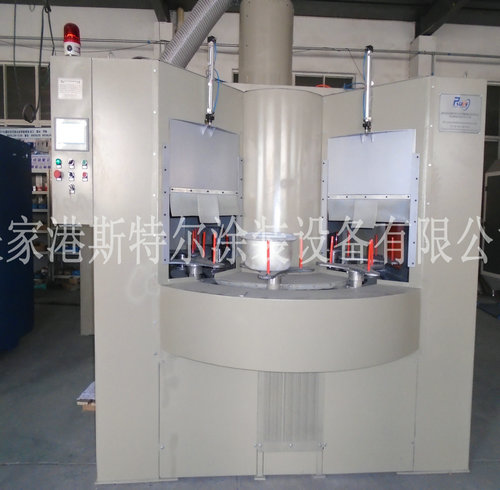

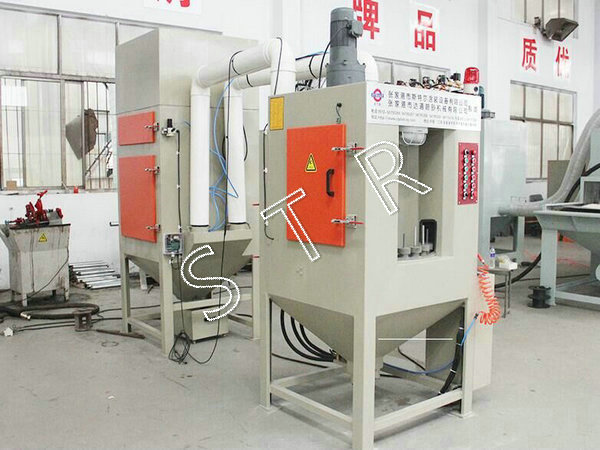

本噴砂機適用于10-490mm口徑的分類產品工件的內和外外壁diy手工工作噴砂使用,徹底清除外外壁的泥垢、外壁除銹處理、外壁精煉、提高了光滑度、徹底清除外壁能力等。(舉例:電飯煲、杯具、不粘鍋、安卓手機硬殼、網吧電腦硬殼、風葉、木工鋸片之類的)可按企業標準要求訂制單工序或雙工序。
The sandblasting machines apply to 10-490 mm diameter of of all kinds of the internal and external surfaces of the manual operation sandblast homework, remove the dirt, surface derusting appearance, surface strengthening and improving roughness, removing surface stress, etc. (for example: electric meal bao, cup with, titanium, cell phone casing, computer shell, impeller, saw blades, etc) make single or double position according to customers' special requirements.
◆主要的能力性能參數 Main technical parameters
機械設備型號規格 Model |
STR-A1500型十三槍圓板旋轉氣缸式 |
STR-A1600型八槍圓輪回升式 |
STR-A1600型十四槍圓筒回升式 |
機器規格尺寸 Complete machine size(mm) |
1500×2160×3000 |
1600×1800×2500 |
2200×2400×3000 |
工作中艙長度 Working class size(mm) |
Φ1400 |
Φ1500 |
Φ2000 |
清灰箱尺寸規格 Dedust box sizes(mm) |
1000×1200×2500 |
1000×1200×2500 |
1400×1400×2500 |

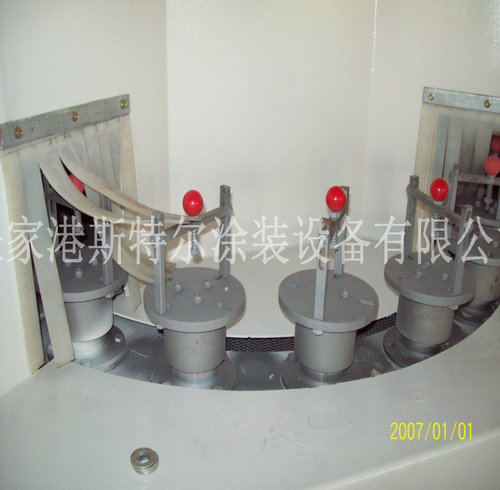

小轉盤數 The small turntable for |
16個 |
8個 |
8個 |
噴槍數 Gun number |
12把 |
8把 |
14把 |
電源模塊 Power |
380V三相電機電 |
380V三相電源電 |
380V三相四線制電 |
照明 Floodlight |
2盞防震燈 |
2盞防火燈 |
2盞防震燈 |
設備克重 Machine weight |
800kg |
750kg |
800kg |
