◆好產品特色 Product features
此機型為兩用型模具及滾筒噴砂機,產品類小工件產品可以批量生產用滾筒來生產提高了生產產量,重型工件可以使用轉臺降低工人的勞動強度,大大的滿足了客戶的需求。
The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.
◆具體水平參數指標 Main technical parameters
機器設備具體型號 Model |

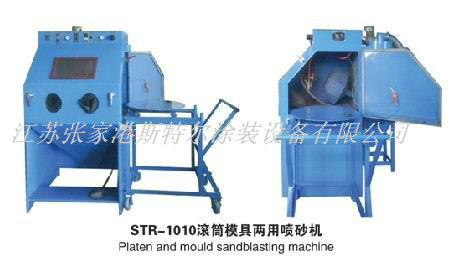

STR-1010滾筒模具兩用噴砂機 |
工作的艙尺寸 Internal size(mm) |
1000×1000×790 |
整個設備尺碼 Complete machine size(mm) |
1000×1540×1830 |
交流電源 Power |
220V 50Hz |
機設備燈光燈 Machine floodlight |
220V 13W節水燈 |
溶合器變頻電動機 Separator motor |
220V 50Hz 550W |
分開器排風量 Separator air volume |
8.5m3/min |
縮短自然空氣源 Compressed air source |
2-8bar(kg/cm2) |
轉臺厚度 Turntable diameter(mm) |
500 |
轉臺承載 Turntable bearing |
150kg |
滾筒式承載 Roller bearing |
10-30Kg |
儀器凈重量 Machine net weight |
380 kg |
